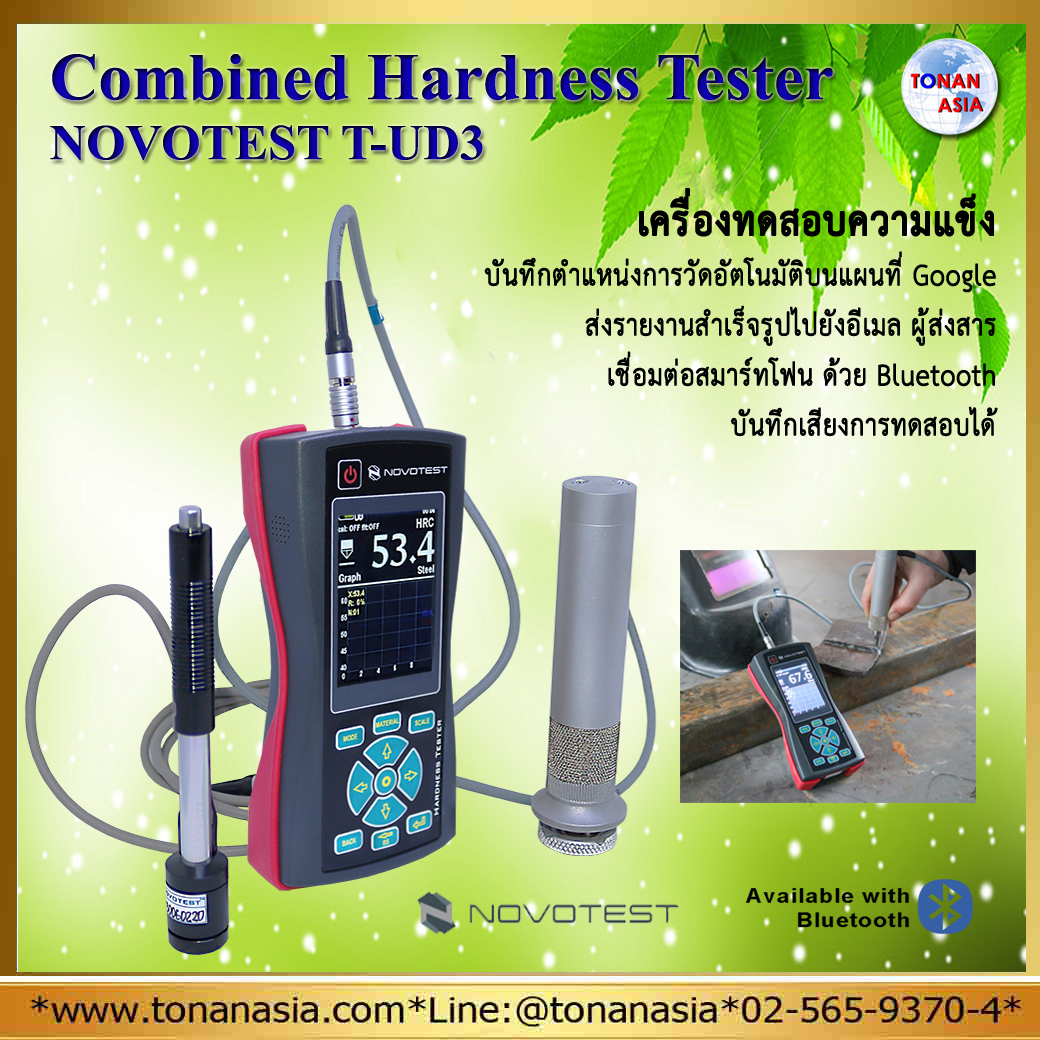

Combined Hardness Tester NOVOTEST T-UD3

เครื่องทดสอบความแข็งแบบพกพา

  • เครื่องวัดความแข็ง 2ระบบ Ultrasonic Contact Impedance (ASTM A1038) and Leeb (ASTM A956)
  • สามารถทดสอบความแข็งของวัสดุประเภทต่างๆ ได้หลากหลาย
  • มีแอพพลิเคชั่นทำงานในมือถือระบบแอนดรอย
  • มีบลูทูธ
  • สามารถทดสอบกับงานที่มีขนาดเล็ก หนาเพียง 1มม. * เมื่อใช้งานร่วมกับ UCI Probe Test Stand
  • built-in Camera



  • Hardness tester
  • UCI probe (10N, 50N or 98N for choice)
  • Leeb probe (D type)
  • 3pcs AA batteries
  • Charger
  • USB cable
  • Operating manual
  • Software for PC
  • Case
UCI probe types
  • 1kgf (10N) 2.2 lbf
  • 5kgf (50N) 11lbf
  • 10kgf (98N) 22lbf
Leeb probe types
  • D
  • DC
  • DL
  • C
  • D+15
  • E
  • G
Measuring range
  • HRC:20~70
  • HB:90~650
  • HV:230~940
  • Tensile strength, MPa: 370~1740
  • User calibrations for any range (for example: HV100-1600)
Measuring accuracy
  • HRC: 2HRC
  • HB: 10HB
  • HV: 15HV
Standards
  • ASTM A1038
  • ASTM A956
  • ASTM A370
  • ISO 16859
  • ASTM E140
  • ISO 18265
  • DIN 50159
  • GB/T 34205
Indenter UCI probe – Diamond indenter
Leeb probe – Hardened ball
Measuring direction Any direction 360°
Data storage Limited only by the memory card up to 32Gb
Communication Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scales
  • UCI probe – HRC, HB, HV, MPa
  • Leeb probe – HRC, HRB, HB, HV, HL, MPa
  • Additional custom scales for calibration
Materials
  • Ultrasonic (UCI) probe – pre-calibrated for steel
  • Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
  • Additional custom materials for calibration
Data display
  • Load applied/contact (UCI)
  • Angle (Leeb)
  • Single test result
  • Max, Min, Average of tests
  • Number of tests,
  • Deviation
  • Var. coeff.
  • Histogram, Signal and Smart Modes (Filter of incorrect measurements).
Language
  • English
  • German
  • French
  • Polish
  • Russian
    *additional languages available by request
Indication Color LCD display (320×240)
Operating environment
  • Temperature:-20°C~40°C
  • Humidity: 30%~80%R.H.
Power supply DC 4,5V (3 pcs batteries AA)
Instrument dimensions 160x75x30mm
Net weight Approx. 0.3kg (without probe)
Gross weight (package) 2kg
Package dimensions, cm 33*27*10
Battery life Approx. 10 hours.
Warranty 3 (1+2) years
Package gross weight, kg 1.8-2kg
  • Small indenter imprint (suits for mirror surfaces of shafts necks, blades, gear teeth, etc.)
  • Measuring surface hardened layers hardness
  • Wide range of hardness testing
  • Various measurement modes
  • 88 combinations of materials and hardness scales (calibrations)
  • Calibration of any scale in any range
  • Convenience and ease of measurement
  • Optimized number of buttons
  • Large full-color graphic display with bright backlight
  • Built-in photo camera for thorough reports
  • Automatic probe types recognition
  • Connected probe types indication
  • The calibrations are stored in UCI probe memory
  • Extended operating temperature range (frost, down to – 40°C)
  • Internal memory and communication with a PC
  • New intuitive menu with tips on the buttons
  • Optional wireless mini printer
  • Waterproofed housing
  • Rubber bumper protected housing
  • Internal clock
  • Hardness value measuring for any mass products with more than 1 mm  thickness (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape, hardness testing of metal coatings, etc.)
  • Different operating modes:
    • Graph – the graph building mode
    • Histogram – the histogram building mode
    • Statistics – provides statistics for the current set of measurements
    • Smart – filters the incorrect measurements
    • Signal – displays the probe signal (only for the Leeb probe)
