Micrometer ไมโครมิเตอร์

Measuring Instruments

Micrometer ไมโครมิเตอร์

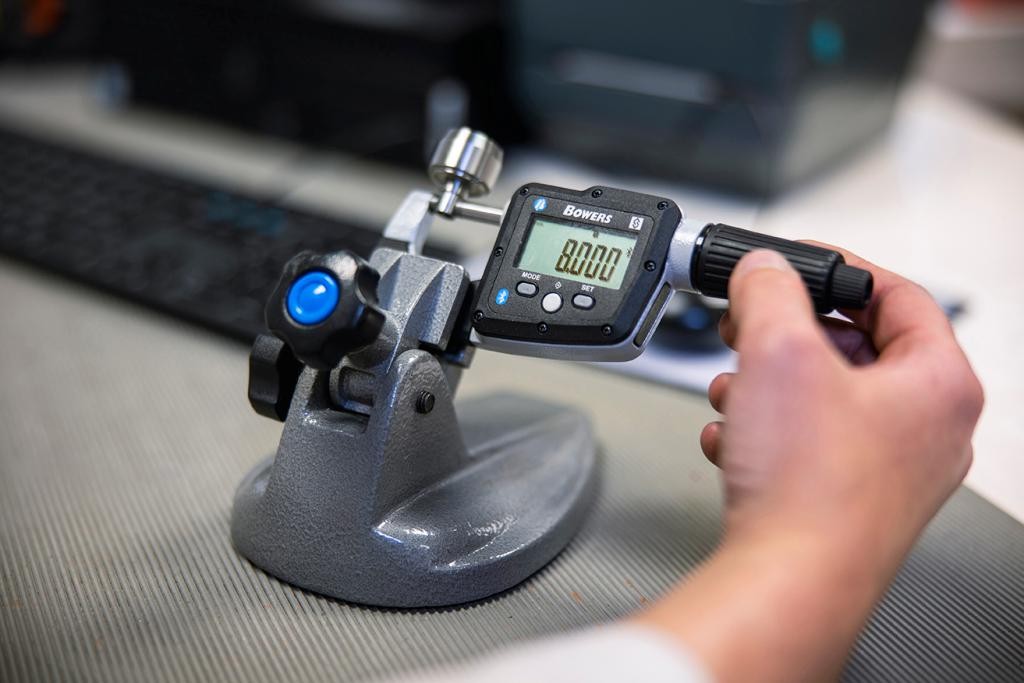

New! DIGIMIC – ดิจิตอลไมโครมิเตอร์ DIGITAL EXTERNAL MICROMETER

Outside Micrometer

External Micrometer MW200

Model (MM)
Code No. Range (mm) Resolution (mm)
MW200-01 0-25 0.01
MW200-02 25-50 0.01
Mw200-03 50-75 0.01
MW200-04 75-100 0.01
Model (INCH)
Code No. Range (inch) Resolution (inch)
MW200-01I 0-1 0.0001
MW200-02I 1-2 0.0001
Mw200-03I 2-3 0.0001
MW200-04I 3-4 0.0001
Features

Complies with: DIN 863 / 1 Features • Tungsten carbide measuring faces • Satin – chrome scale • Hammertone finish frame with insulated grip • Tapered for easier access to difficult areas • Locking lever • Constant force ratchet • Supplied in plastic case • Adjusting key • Metric or imperial versions available

Download Specification





Large External Micrometer MW210

Model
Code No. Range (mm) Resolution (mm)
MW210-01 100-125 0.01
MW210-02 125-150 0.01
MW210-03 150-175 0.01
MW210-04 175-200 0.01
MW210-05 200-225 0.01
MW210-06 225-250 0.01
MW210-07 250-275 0.01
MW210-08 275-300 0.01
Features

Features Standard: DIN 863

• Strong forged steel frame, hammertone finish, quality insulated grip

• Design Line product

• Satin-chrome scale

• Tapered for easier access to difficult areas

• With tungsten carbide measuring faces and constant force ratchet

• Packed in wooden box with standard and adjusting key

Download Specification





Large Adjustable External Metric Micrometer MW220

Model
Code No. Range (mm) Resolution (mm)
MW220-01 300-400 0.01
MW220-02 400-500 0.01
MW220-03 500-600 0.01
MW220-04 600-700 0.01
MW220-05 700-800 0.01
MW220-06 800-900 0.01
MW220-07 900-1000 0.01
MW220-08 1000-1200 0.01
MW220-09 1200-1400 0.01
Features

Standard: Factory Standard
• With longer jaws which permit the measurement of large workpiece
• Stop screw for locking the slider
• Made of hardened stainless steel
• Jaws for internal and external measurement
• Chromed scale with engraved graduations
• The scale show both mm and inch
• Measuring surface is micro-lapped
• With fine adjustment

Download Specification





Digital Large External Micrometer MW220 – DDL

Model
Code No. Range (mm) Resolution (mm) Resolution (inch)
MW220-01DDL 300-400 0.001 0.00005
MW220-02DDL 400-500 0.001 0.00005
MW220-03DDL 500-600 0.001 0.00005
MW220-04DDL 600-700 0.001 0.00005
MW220-05DDL 700-800 0.001 0.00005
MW220-06DDL 800-900 0.001 0.00005
MW220-07DDL 900-1000 0.001 0.00005
Features

Standard: DIN 863 / IAIS

• Features wide measuring range with interchangeable anvils

• Hardened and ground spindles/anvils

• “Tube type” low weight, Dur-al frame with insulated grips

• Tapered for easier access to difficult areas

• With tungsten carbide measuring faces and constant force ratchet on thimble

• Packed in a wooden/plastic box with setting standard and adjusting key Digital Features

• Large 7.5mm character height digital display

• ‘Soft keys’ for maximum operating comfort

• Functions: tolerance indication, ABS/INC, preset, on/off, zero-setting, battery low indication

Download Specification





Workshop Digital Micrometer 200-DBL

Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch)
MW200-01DBL 0-25 0-1 0.001 0.00005
MW200-02DBL 25-50 1-2 0.001 0.00005
MW200-03DBL 50-75 2-3 0.001 0.00005
MW200-04DBL 75-100 3-4 0.001 0.00005
Features

Standard: DIN 863

• Large LCD display

• Tapered for easier access to difficult areas

• Hammertone finished frame with high quality insulated grip

• Tungsten carbide measuring faces and constant force ratchet on thimble

• Functions: mm/inch conversion, ABS/INC, zero setting

• Packed in plastic box with standard (over 25mm)

Download Specification







Digital External Micrometer MW201-DAB

Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch)
MW201-01DAB 0-25 0-1 0.001 0.00005″
MW201-02DAB 25-50 1-2 0.001 0.00005″
MW201-03DAB 50-75 2-3 0.001 0.00005″
MW201-04DAB 75-100 3-4 0.001 0.00005″
Features

Standard: DIN 863

• Protected to IP54 specifications

• Rugged steel design • Large LCD display

• Absolute and Incremental modes

• Carbide measuring faces

• Ball attachment included

• Packed in plastic box with standard (over 25mm)

Download Specification







Digital Absolute Snap Micrometer 202-DABS
Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch) Accuracy (mm) Accuracy (inch)
MW202-01DABS 0-25 0-1 0.001 0.00005″ 0.003 0.0002
MW202-02DABS 25-50 1-2 0.001 0.00005″ 0.003 0.0002
MW202-03DABS 50-75 2-3 0.001 0.00005″ 0.004 0.0002
MW202-04DABS 75-100 3-4 0.001 0.00005″ 0.004 0.0002

Data Cable

Code No. Description
MW-Y100/700USB Data Cable-USB to suit all DABS products
Features

• Absolute Measuring System

• RS232 Digimatic output

• Non rotating spindle

• Constant measuring force

• Quick & repeatable measurement

Download Specification









Mechadigit Digital Outside Micrometer MW230-MDB



Model
Code No. Range (mm) Resolution (mm)
MW230-01MDB 0-25 0.01
MW230-02MDB 25-50 0.01
Features
  • Standard: DIN 863
  • Low cost, mechanical/digital read-out micrometer
  • Satin-chrome scale
  • Forged steel frame with insulated grip
  • Tapered for easier access to difficult areas
  • with tungsten carbide measuring faces and constant force ratchet
  • Packed in wooden/plastic box with standard and adjusting key
Download Specification







Tube Micrometer MW255



Model
Code No. Range (mm) Range (inch) Dimn-A       Dimn-B
MW255-01 0-25 0.01 27.5mm 4.75mm
MW255-02 25-50 0.01 27.5mm 4.75mm
Features

Complies with: DIN 863

Features

• Micrometer for measuring tube wall thickness

• With spherical anvil

• Satin – chrome scale

• Hammertone finished frame with insulated grip

• Tungsten carbide measuring faces on spindle

• Constant force ratchet on thimble

• Supplied in plastic box

Download Specification









Blade Outside Micrometer MW275

Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch)
MW201-01DAB 0-25 0-1 0.001 0.00005″
MW201-02DAB 25-50 1-2 0.001 0.00005″
MW201-03DAB 50-75 2-3 0.001 0.00005″
MW201-04DAB 75-100 3-4 0.001 0.00005″
Features

Standard: DIN 863

• Protected to IP54 specifications

• Rugged steel design • Large LCD display

• Absolute and Incremental modes

• Carbide measuring faces

• Ball attachment included

• Packed in plastic box with standard (over 25mm)

Download Specification







Digital Point Micrometer MW270-DDL

Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch) Point Angle
MW270-01DDL 0-25 0-1 0.001 0.00005 30°
MW270-02DDL 25-50 1-2 0.001 0.00005 30°
MW270-03DDL 50-75 2-3 0.001 0.00005 30°
MW270-04DDL 75-100 3-4 0.001 0.00005 30°
Features
Features
Standard: DIN 863
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard to reach places
• Features ‘easy to read’ large 7.5mm character height, digital display
• Modern design
• ‘Soft keys’ for maximum operating comfort
• Long life guaranteed
• With constant force ratchet thimble
• Hammertone finished frame with high quality insulated grip
• Tapered for easier access to difficult areas
• Functions: mm/inch conversion, ABS/INC, on/off, zero-setting, data-output, battery low indication
• Packed in plastic box with standard setting rod
Download Specification









Analogue Snap Micrometer MW290




Model
Code No. Range (mm) Resolution (mm) Indicator Range
MW290-01 0-25 0.001 +/- 0.04mm
MW290-02 25-50 0.001 +/- 0.04mm
Features

• Measuring range 0-25mm & 25-50mm
• Retractable anvil with an indicator for precise measurement of mass produced parts
• Micrometer accuracy 0.003mm
• Indicator accuracy 0.001mm

Download Specification












Inside Micrometer

Caliper Type Inside Micrometer MW280



Model
Code No. Range (mm) Resolution (mm) Note
MW280-01 0-25 0.01 Setting Ring Included
MW280-02 25-50 0.01 Setting Ring Included
MW280-03 50-75 0.01
MW280-04 75-100 0.01
Features

Complies with: DIN 863

Features • For measuring the inside of a bore or hole • Resolution 0.01mm • With constant force ratchet thimble • Satin chrome finished frame • With tungsten carbide measuring faces and constant force ratchet • Locking clamp for positive locking of spindle • Packed in wooden / plastic box with setting ring and adjusting key

Download Specification





Digital Caliper Type Inside Micrometers MW280-DDL



Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch) Setting Ring
MW280-01DDL 0-25 0.2-1.2 0.001 0.00005 Yes
MW280-02DDL 25-50 1-2 0.001 0.00005 Yes
MW280-03DDL 50-75 2-3 0.001 0.00005 No
MW280-04DDL 75-100 3-4 0.001 0.00005 No
MW280-05DDL 100-125 4-5 0.001 0.00005 No
MW280-06DDL 125-150 5-6 0.001 0.00005 No
Features

SeriesComplies with: DIN 863

Features • For measuring the inside of a bore or hole • Features ‘easy to read’ large 7.5mm character height, digital display • ‘Soft keys’ for maximum operating comfort • With constant force ratchet thimble • Satin chrome finished frame with high quality insulated grip • Functions: mm / inch conversion, tolerance indication, ABS / INC, preset, on / off, zero-setting, battery low indication

Download Specification







Tubular Internal Micrometer MW300



Model
Code No. Range (mm) Resolution (mm)
MW300-01 50-250 0.01
MW300-02 50-600 0.01
MW300-04 150-2000 0.01
Features

Standard: DIN 863 • Ideal for large diameters • With tungsten carbide measuring faces • All measuring faces are micro-lapped • Satin-chromed scale and body with lock screw • All extension pieces equipped with gauge parts are under constant spring loading • Packed in a wooden box

• Supplied with setting piece

Download Specification











Traditional Internal Micrometer 900 series



Model
Metric Code No. Range (mm) Head Range (mm)
901M 25-55 5
902M 50-210 10
903M 50-310 10
Imperial Code No. Range (inch) Head Range (inch)
901 1-2 0.25
902 2-8 0.5
903 2-12 0.5
Features

Each model comprises a measuring head, a set of extension rods and a spacing collar to facilitate alternative measuring ranges. The smaller models (901, 902 & 903) have detachable extension handles.

All models supplied in a fitted case.

Complies with: BS959

Features • Supplied in a fitted case

Download Specification












Micrometer Head

Small Micrometer Head MW310

Model
Code No. Range (mm) Range (inch) Resolution (mm) Resolution (inch) Jaws
MW110-15DBL 0-150 0-6 0.01 0.0005 40mm
MW110-20DBL 0-200 0-8 0.01 0.0005 50mm
MW110-30DBL 0-300 0-12 0.01 0.0005 60mm
Features

Complies with: DIN 862

Features
• On/off switch
• Zero point at any position
• Displays values in mm and inch
• All metal parts made of hardened stainless steel
• CR2032 battery
• ABS / INC measurement

Download Specification

Small Micrometer Head MW310

Model
Code No. Description Range (mm) Resolution
MW310-13 Flat Spindle 0-13 0.01mm
MW310-15 Flat Spindle 0-15 0.01mm
MW310-15R Spherical Spindle 0-15 0.01mm
Features
Standard: Factory Standard
• Spindle diameter 6.5mm
• Universal micrometer head for X-Y stage or other purposes
• Satin-chrome finished body
• Laser engraved graduations
Download Specification





Standard Micrometer Head MW310-25

Model
Code No. Description Range (mm) Resolution
MW310-25  0-25 Flat Spindle   0.01
Features
Standard: Factory Standard
• With constant force ratchet stop
• Universal micrometer head for X-Y stage or other purposes
• Satin-chrome finished body
• Laser engraved graduations
Download Specification





Digital Micrometer Head MW312-25D

Model
Code No. Range (mm) Range (inch) Resolution (mm)
MW312-25DBL 0-25 1 0.001
Features

Standard: DIN862
• Universal micrometer head for X-Y stages or other purposes
• Large LCD display
• Constant force ratchet thimble
• Functions: mm/inch conversion, ABS/INC, zero-setting

Download Specification










Depth Micrometer




Micrometer Stand

Traditional Depth Gauge Micrometer



Model
Code No. Range (mm) Code No. Range (inch)
890M 0-25 890 0-1
891M75 0-75 8913 0-3
892M150 0-150 8916 0-6
892M300 0-300 89112 0-12
892M75 0-75 8923 0-3
891M150 0-150 8926 0-6
891M300 0-300 89212 0-12
Features

Complies with BS6468:1984

890 Series:
• Fixed depth rod, 6.5mm diameter
• 63.5mm / 2 1/2″ base length
• ‘Speeder’ type ratchet
• Lock screw

891 Series:
• Interchangeable depth rods, 4mm diameter
• 63.5mm / 2 1/2″ base length

892 Series:
• As 891 Series except for: 100mm / 4″ base length

Download Specification





Digital Depth Micrometer MW305-DDL




Model



Code No Range  Reslution  Base
MW305-00DDL 0-25mm/ 0-1″ 0.001mm/ 0.00005″ 4″/ 100mm
MW305-01DDL 0-50mm/ 0-2″ 0.001mm/ 0.00005″ 4″/ 100mm
MW305-02DDL 0-100mm/ 0-4″ 0.001mm/ 0.00005″ 4″/ 100mm
MW305-03DDL 0-150mm/ 0-6″ 0.001mm/ 0.00005″ 4″/ 100mm
MW305-04DDL 0-200mm/ 0-8″ 0.001mm/ 0.00005″ 4″/ 100mm
MW305-05DDL 0-300mm/ 0-12″ 0.001mm/ 0.00005″ 4″/ 100mm



Features



Standard: DIN 863

  • Interchangeable rods (spherical ends)
  • Rods are hardened and spherically lapped
  • Constant force ratchet thimble
  • Satin chrome finished base
  • Functions: mm / inch conversion,set, on / off, zero – setting, battery low indication, hold,0…ABS
Download Specification









Micrometer Stand MW279-01A

Model



Code No. Description
MW279-01A Stand for micrometers up to 100mm



Features



• Designed for micrometers up to 100mm
• Painted cast iron base with plastic covered clamping jaws
• Angle adjustable

Download Specification









Micrometer Stand MW279-02

Model



Code No. Description
MW279-02 Folding Stand for micrometers up to 100mm



Features



• Designed for micrometers up to 100mm
• Painted cast iron base
• Clamp opening 5-15mm



Download Specification










Micrometer ไมโครมิเตอร์ เป็นเครื่องวัดละเอียดชนิดหนึ่งที่นิยมใช้ในงานอุตสาหกรรมต่างๆ ในงานที่ต้องการความละเอียดสูงในระดับทศนิยม 3 ตำแหน่งของมิลลิเมตร เราใช้ไมโครมิเตอร์วัดความหนาของกระดาษ เส้นผ่านศูนย์กลางของเส้นลวด และทรงกลมขนาดเล็ก มีทั้งแบบวัดนอก (Outside micrometer) และวัดใน (Inside micrometer)

ปัจจุบันมีการพัฒนาและออกแบบไมโครมิเตอร์ตามประเภทการใช้งานต่างๆ เช่น Interchangeable Anvils Micrometer สำหรับช่วงการวัดกว้าง, Mechadigit Micrometer สามารถอ่านค่าได้ทั้งแบบสเกลและตัวเลข, Blade Micrometer, Point Micrometer, Tube Micrometer เป็นต้น

tags: micrometer, moore&wright, outside micrometer, inside micrometer, digital micrometer, large outside micrometer, snap micrometer, blade micrometer, tube micrometer, point micrometer, caliper type inside micrometer, turbular inside micrometer, depth micrometer, mw201-01dab, ไมโครมิเตอร์, ไมโครมิเตอร์วัดนอก, ไมโครมิเตอร์วัดใน
