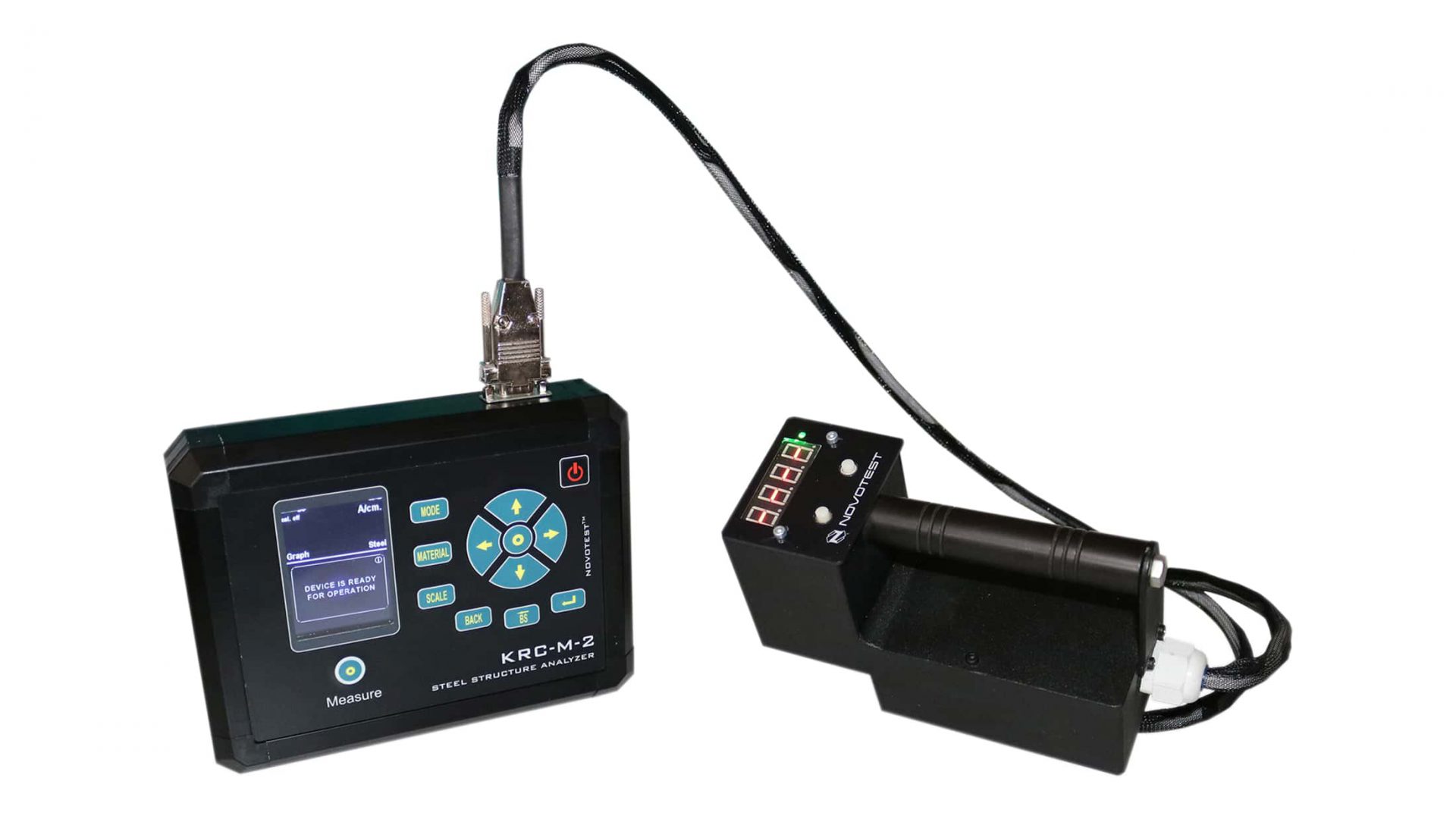

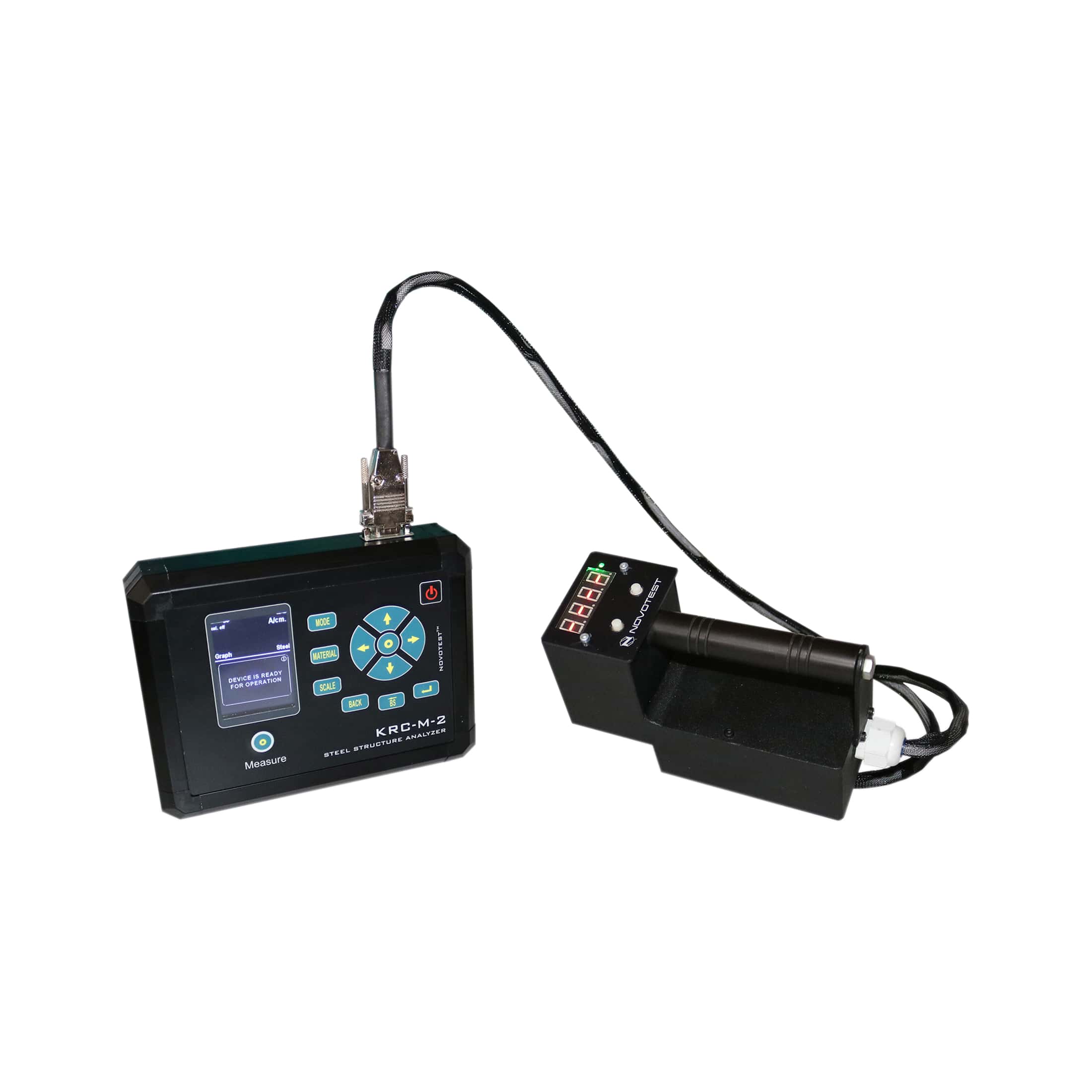

Steel Structure Analyzer NOVOTEST KRC-M2 (Coercive Force Meter)
The steel structure analyzer measures the coercive force of metal products, facilitating non-destructive testing of thermal treatments and evaluating mechanical properties and residual stresses, as well as determining hardness and grading ferromagnetic alloys.
- The probe with optional display and buttons control of the main functions
- Averaging 99 results, with the possibility to use the predictive average
- Memory: up to 100,000 measurements with the ability to view them on the screen of the device, or transfer to PC
- Real-time clock â each measurement is saved with the date and time
- Ability to enter additional scales and additional materials for calibration
- Calibration mode of basic and additional scales
- Adjust the brightness of the display, audio, language selection
- Ability to save backups calibrations on the internal memory of the device
- Smart sensors with built-in memory of calibrations
| Standard modes | Measurement of coercive force Current measurement Code measurement (units) Additional scale for calibration |
|  The measuring range of the coercive force, Ð/Ņm (Ð/m) |  1-40,0 (100-4000) |
| Â Measurement cycle, seconds, not more | Â 4 |
| Â Magnetize | Â pulse |
| Â Additional scale for calibration | Â 7 |
|  Power | Li-Ion battery |
| Â Battery life, h, not less | Â 8 |
| Â Dimensions of the electronic unit, mm | Â 270x230x70 |
| Â Dimensions of the probe, mm | Â 200x170x70 |
- Electronic unit KRC-M2
- Probe
- Test sample 1-10 Ð/cm
- Test sample 15-40Ð/cm
- Charger
- Cable for PC connection
- Software for PC
- Operating manual
- Case
