Profile Projector โปรไฟล์โปรเจคเตอร์

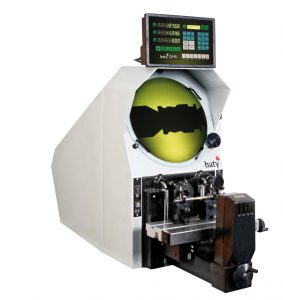

Baty R14 – Profile Projector โปรไฟล์โปรเจคเตอร์

Features

• 340mm (14″) screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: x10, x20, x25, x50 and x100
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 175mm (7″) x 100mm (4″)
• Digital angle measurement to 1 minute

Specification

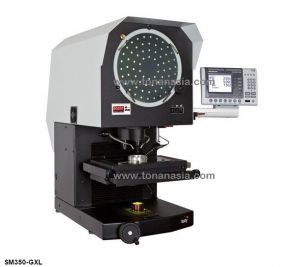

Baty SM350 – Profile Projector โปรไฟล์โปรเจคเตอร์

Features

• Fully usable 340mm screen
• Digital screen protractor
• Built in helix adjustment
• Sturdy all-steel design
• Cross roller bearings
• Quick release ‘X’ and ‘Y’ travel
• Erect image
• Easy-view vertical screen
• Large stage travel 10″(250mm) x 5″(125mm)
• Rotating chart clips
• Fibre optic illumination for surface measurement
• Includes 10x lens

Specification






Baty International

Vision System วิชั่น ซิสเต็ม





Venture 3D Manual

Features
  • High resolution 0.5μm scales for increased accuracy

  • 6.5:1 Zoom lens

  • Programmable segmented LED lighting system

  • Z axis dovetail slide mount for increased Z axis capacity

  • High precision cross-roller stage

  • Ultra-smooth plain rod drives

  • Auto video edge detection tools

  • Auto programming

  • On screen focus meter (Man) / Auto-focus (CNC)

Specification

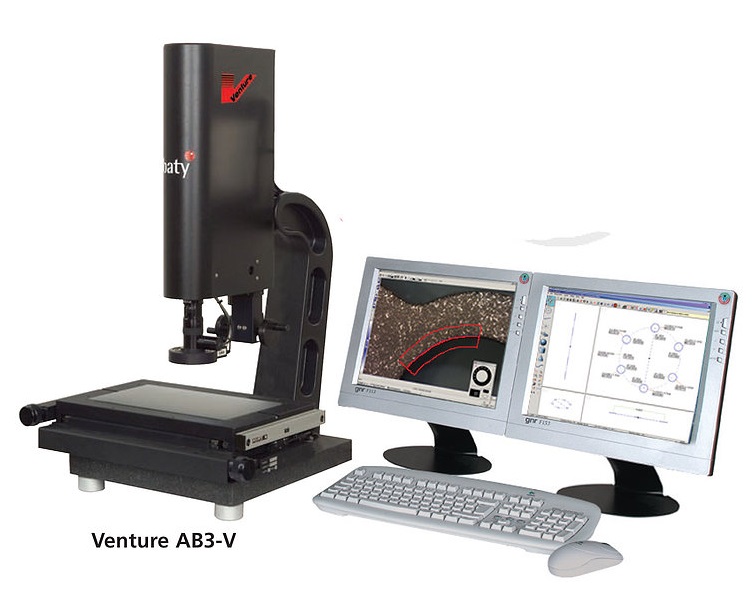

Venture 3D Manual Fusion 3D Software

Features
  • Fully dimensioned part view

  • CAD import / export

  • Profile scanning and best fit to CAD master

  • SPC batch information including control charts

  • Auto output to excel

  • 64 LED programmable segmented surface illumination

  • Advanced video edge detection

  • TTL light and collimated profile illumination

  • Motorised Z axis

  • Autofocus

  • Renishaw touch probe

  • Manually indexable rotary axis

Specification

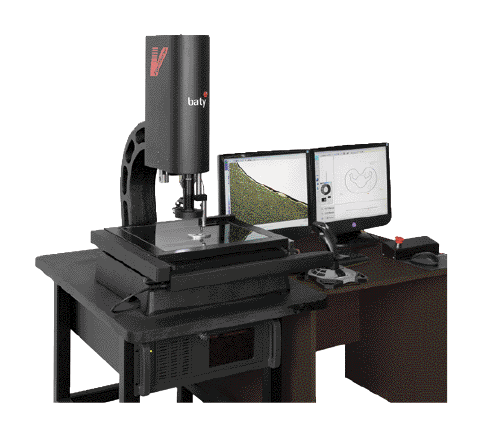

Venture 3D CNC



Features

• Teach and Repeat programming
• Programmable segmented LED lighting
• High resolution 0.5µm scales for increased accuracy
• CAD import / export
• Scanning & best fitting
• Fully dimensioned part view
• SPC included
• One click output to Excel™
• Autofocus
• 165mm Z axis measuring range on adjustable dovetail slide
• 250mm x 125mm and 300mm x 300mm XY stages available
• Auto program from CAD

Specification

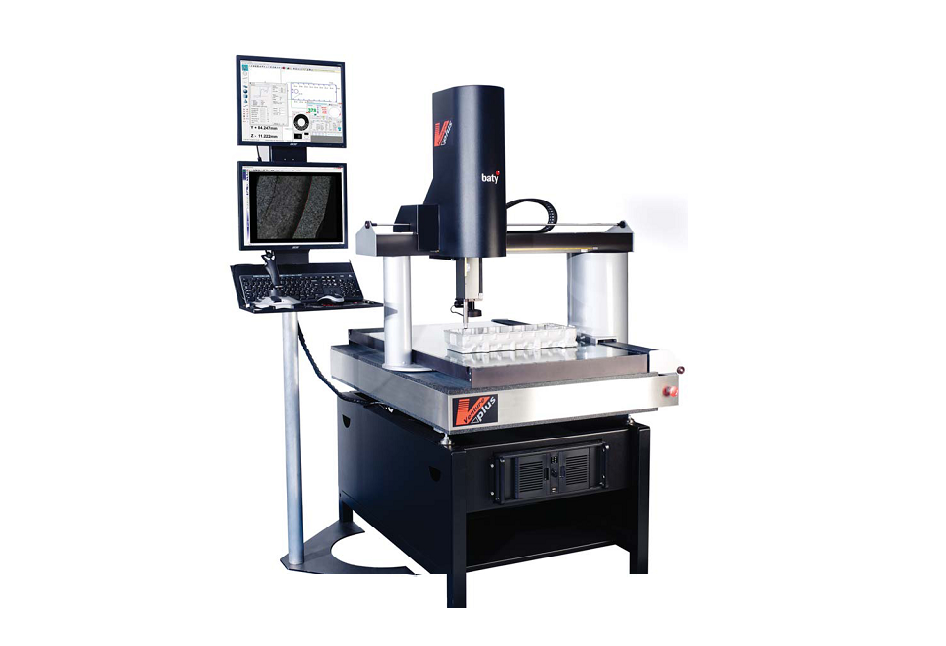

Venture Plus



Features

• Teach and Repeat programming
• Programmable segmented LED lighting
• High resolution 0.5µm scales for increased accuracy
• CAD import / export
• Scanning & best fitting
• Fully dimensioned part view
• SPC included
• One click output to Excel™
• Autofocus
• Renishaw TP20 touch probe joint

Specification






Venture FV1080

Features

– Measure up to 999 dimensions in 1 second
– Fully automatic inspection with CNC playback
– 100 x 80mm measuring range
– Motorised Auto-Focus with 75mm travel
– Programmable LED lighting with motorised control
– Double telecentric optics for high accuracy
– Automatic measurement, extract features from the scanned part
– Auto program from CAD, features, dimensions and tolerances
– Full reporting and SPC with immediate on screen PASS/FAIL classification
– Simple, easy to use sw and user interface
– Character recognition- identify part numbers in a batch

Specification







Venture FV2020

Features

– Measure up to 999 dimensions in 1 second
– Fully automatic inspection with CNC playback
– 200 x 200mm measuring range
– Motorised Auto-Focus with 75mm travel
– Programmable LED lighting with motorised control
– Double telecentric optics for high accuracy
– Automatic measurement, extract features from the scanned part
– Auto program from CAD, features, dimensions and tolerances
– Full reporting and SPC with immediate on screen PASS/FAIL classification
– Simple, easy to use sw and user interface
– Automatic temperature compensation
– Character recognition- identify part numbers in a batch

Specification
